Gradient V2

Advanced gradient picker: a read-only CSS output that opens a dropdown editor (unlimited stops, linear/radial, angle, RGBA, live preview). Blank = no gradient.

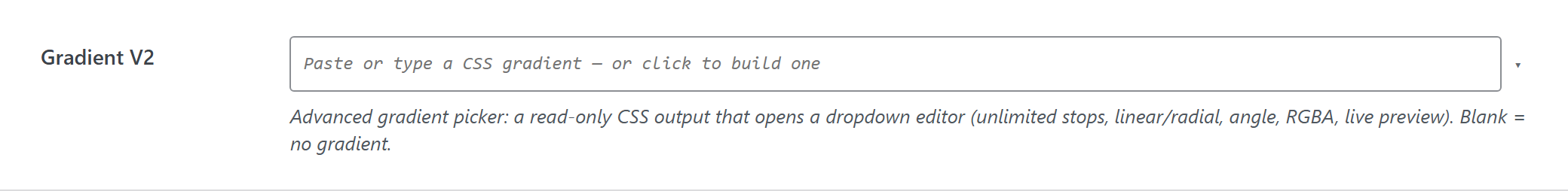

Option type — Theme Settings example
$options = [
	'demo_gradient_v2' => [
		'label' => __( 'Gradient V2', 'unysonplus' ),
		'type' => 'gradient-v2',
		'value' => [
			'type' => 'linear',
			'angle' => 90,
			'stops' => [], // Blank by default: read-only output stays empty until you open the dropdown and add stops.
		],
		'desc' => __( 'Advanced gradient picker: a read-only CSS output that opens a dropdown editor (unlimited stops, linear/radial, angle, RGBA, live preview). Blank = no gradient.', 'unysonplus' ),
	],
];

Reading the value​

gradient-v2 returns an array — read a field by key (the full shape is in Saved value below).

In a shortcode​

The shortcode framework passes the option values into view.php as $atts:

$value = $atts['demo_gradient_v2'];
echo esc_attr( $value['type'] ); // + $value['angle'], $value['stops'] (see Saved value)

In a page template — a per-page option​

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_gradient_v2' );
echo esc_attr( $value['type'] ); // + $value['angle'], $value['stops'] (see Saved value)

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book  = fw_get_db_post_option( get_the_ID(), 'book' );
$value = $book['demo_gradient_v2'];
echo esc_attr( $value['type'] ); // + $value['angle'], $value['stops'] (see Saved value)

In Theme Settings — a global option​

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_gradient_v2' );
echo esc_attr( $value['type'] ); // + $value['angle'], $value['stops'] (see Saved value)

Saved value​

fw_print( fw_get_db_settings_option( 'demo_gradient_v2' ) ) outputs — the shape of this option type's stored value:

Array
(
    [type] => linear
    [angle] => 135
    [stops] => Array
        (
            [0] => Array
                (
                    [color] => #e5322d
                    [position] => 0
                )

            [1] => Array
                (
                    [color] => #2f74e6
                    [position] => 100
                )

        )

)
