Popover

Collapses an option into a compact trigger that expands an in-flow panel on click. With a single inner option the value passes straight through; with tabs the value is a hash keyed by inner-option id.

Popover​

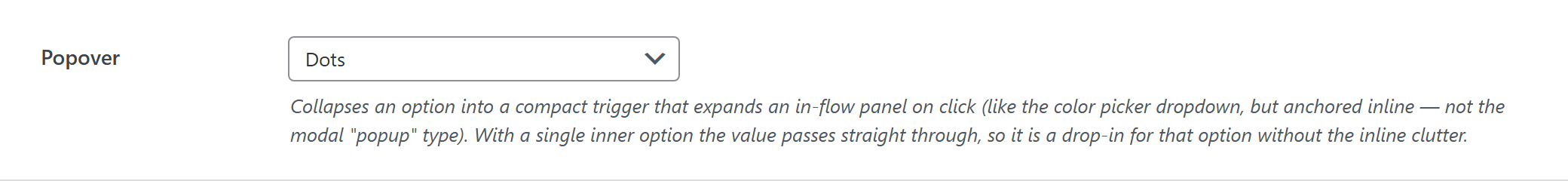

Option type — Theme Settings example
$options = [
	'demo_popover' => [
		'label' => __( 'Popover', 'unysonplus' ),
		'type' => 'popover',
		'value' => 'a',
		'desc' => __( 'Collapses an option into a compact trigger that expands an in-flow panel on click (like the color picker dropdown, but anchored inline — not the modal "popup" type). With a single inner option the value passes straight through, so it is a drop-in for that option without the inline clutter.', 'unysonplus' ),
		'help' => __( 'Click the field to reveal the hosted control; pick a value and it collapses again, showing the selection. The "summary" map turns the saved value into the friendly label on the trigger.', 'unysonplus' ),
		// value => trigger label
		'summary' => [
			'a' => __( 'Dots', 'unysonplus' ),
			'b' => __( 'Romb', 'unysonplus' ),
			'c' => __( 'Squares', 'unysonplus' ),
			'd' => __( 'Waves', 'unysonplus' ),
		],
		// One inner option → its value is the popover's value (passthrough).
		'inner-options' => [
			'pattern' => [
				'type' => 'image-picker',
				'label' => false,
				'value' => 'a',
				'choices' => [
					'a' => get_template_directory_uri() . '/images/patterns/dots_pattern_preview.jpg',
					'b' => get_template_directory_uri() . '/images/patterns/romb_pattern_preview.jpg',
					'c' => get_template_directory_uri() . '/images/patterns/square_pattern_preview.jpg',
					'd' => get_template_directory_uri() . '/images/patterns/waves_pattern_preview.jpg',
				],
			],
		],
		// — Optional attributes you can add —
		// 'summary_key' => '',
		// 'reflect' => null,
		// 'autoclose' => null,
	],
];

Popover (Tabs)​

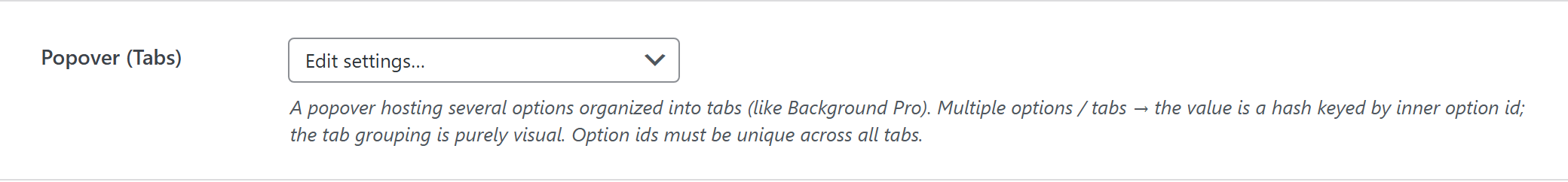

Option type — Theme Settings example
$options = [
	'demo_popover_tabs' => [
		'label' => __( 'Popover (Tabs)', 'unysonplus' ),
		'type' => 'popover',
		'trigger_label' => __( 'Edit settings…', 'unysonplus' ),
		'desc' => __( 'A popover hosting several options organized into tabs (like Background Pro). Multiple options / tabs → the value is a hash keyed by inner option id; the tab grouping is purely visual. Option ids must be unique across all tabs.', 'unysonplus' ),
		'help' => __( 'Click to open, switch tabs to reach each group of controls. The trigger keeps a static label here because there is no single value to summarise.', 'unysonplus' ),
		'tabs' => [
			'content' => [
				'label' => __( 'Content', 'unysonplus' ),
				'options' => [
					'title' => [ 'type' => 'text', 'label' => __( 'Title', 'unysonplus' ), 'value' => '' ],
					'subtitle' => [ 'type' => 'text', 'label' => __( 'Subtitle', 'unysonplus' ), 'value' => '' ],
				],
			],
			'style' => [
				'label' => __( 'Style', 'unysonplus' ),
				'options' => [
					'color' => [ 'type' => 'color-picker', 'label' => __( 'Color', 'unysonplus' ), 'value' => '#2271b1' ],
					'size' => [
						'type' => 'select',
						'label' => __( 'Size', 'unysonplus' ),
						'value' => 'md',
						'choices' => [
							'sm' => __( 'Small', 'unysonplus' ),
							'md' => __( 'Medium', 'unysonplus' ),
							'lg' => __( 'Large', 'unysonplus' ),
						],
					],
				],
			],
			'advanced' => [
				'label' => __( 'Advanced', 'unysonplus' ),
				'options' => [
					'css_class' => [ 'type' => 'text', 'label' => __( 'CSS Class', 'unysonplus' ), 'value' => '' ],
				],
			],
		],
	],
];

Reading the value​

popover returns a string — output it directly.

In a shortcode​

The shortcode framework passes the option values into view.php as $atts:

echo esc_html( $atts['demo_popover'] );

In a page template — a per-page option​

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_popover' );
echo esc_html( $value );

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book = fw_get_db_post_option( get_the_ID(), 'book' );
echo esc_html( $book['demo_popover'] );

In Theme Settings — a global option​

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_popover' );
echo esc_html( $value );

Saved value​

fw_print( fw_get_db_settings_option( 'demo_popover' ) ) outputs — the shape of this option type's stored value:

Array
(
    [width] => Array
        (
            [value] => 320
            [unit] => px
        )

)
