Spacing

Composite Margin + Padding widget — each column has an All Sides select plus a Top / Right / Bottom / Left quadrant arranged like a "+". Values are Bootstrap utility class names from the live spacing scale. Scope it with mode => margin or mode => padding.

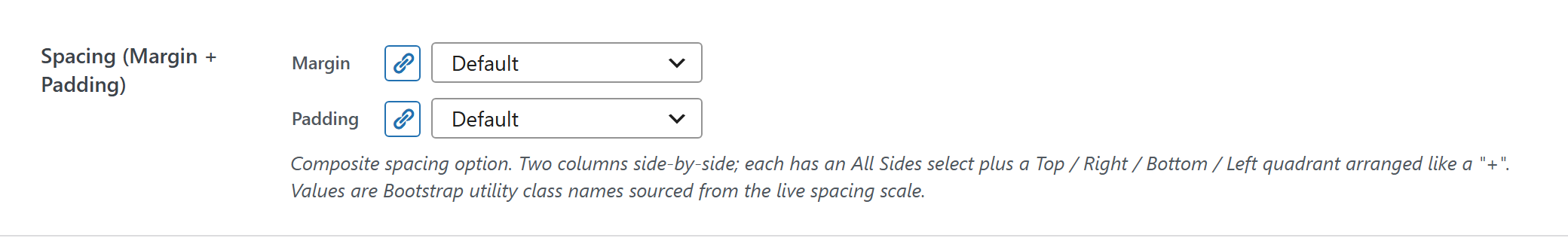

Margin + Padding​

Option type — Theme Settings example
$options = [
	'demo_spacing' => [
		'label' => __( 'Spacing (Margin + Padding)', 'unysonplus' ),
		'type' => 'spacing',
		'desc' => __( 'Composite spacing option. Two columns side-by-side; each has an All Sides select plus a Top / Right / Bottom / Left quadrant arranged like a "+". Values are Bootstrap utility class names sourced from the live spacing scale.', 'unysonplus' ),
		// — Optional attributes you can add —
		// 'value' => [],
	],
];

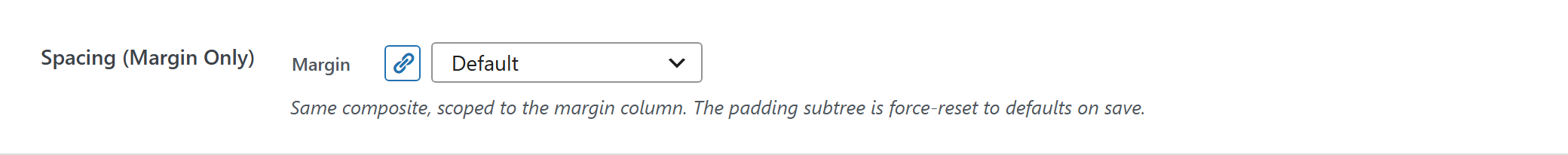

Margin only​

Option type — Theme Settings example
$options = [
	'demo_spacing_margin_only' => [
		'label' => __( 'Spacing (Margin Only)', 'unysonplus' ),
		'type' => 'spacing',
		'mode' => 'margin',
		'desc' => __( 'Same composite, scoped to the margin column. The padding subtree is force-reset to defaults on save.', 'unysonplus' ),
	],
];

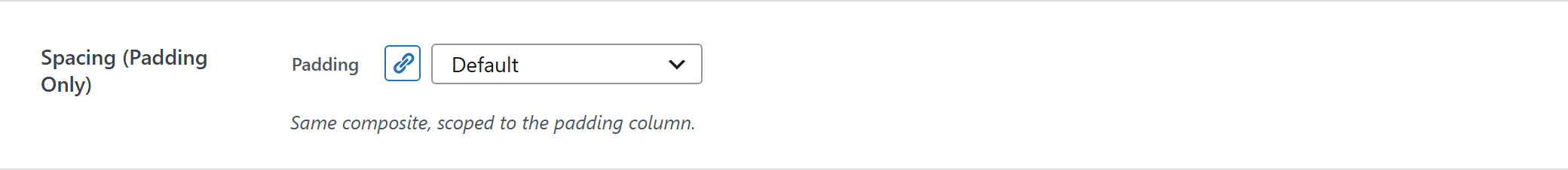

Padding only​

Option type — Theme Settings example
$options = [
	'demo_spacing_padding_only' => [
		'label' => __( 'Spacing (Padding Only)', 'unysonplus' ),
		'type' => 'spacing',
		'mode' => 'padding',
		'desc' => __( 'Same composite, scoped to the padding column.', 'unysonplus' ),
	],
];

Reading the value​

spacing returns an array — read a field by key (the full shape is in Saved value below).

In a shortcode​

The shortcode framework passes the option values into view.php as $atts:

$value = $atts['demo_spacing'];
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

In a page template — a per-page option​

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_spacing' );
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book  = fw_get_db_post_option( get_the_ID(), 'book' );
$value = $book['demo_spacing'];
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

In Theme Settings — a global option​

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_spacing' );
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

Saved value​

fw_print( fw_get_db_settings_option( 'demo_spacing' ) ) outputs — the shape of this option type's stored value:

Array
(
    [margin] => Array
        (
            [all] =>
            [top] => mt-4
            [right] =>
            [bottom] => mb-4
            [left] =>
        )

    [padding] => Array
        (
            [all] => p-3
            [top] =>
            [right] =>
            [bottom] =>
            [left] =>
        )

    [advanced] => Array
        (
        )

)
