Unit Input

A numeric field + a configurable unit dropdown. Saved value is { value, unit }; consume with FW_Option_Type_Unit_Input::to_string( $val ).

Default (px / em / rem)​

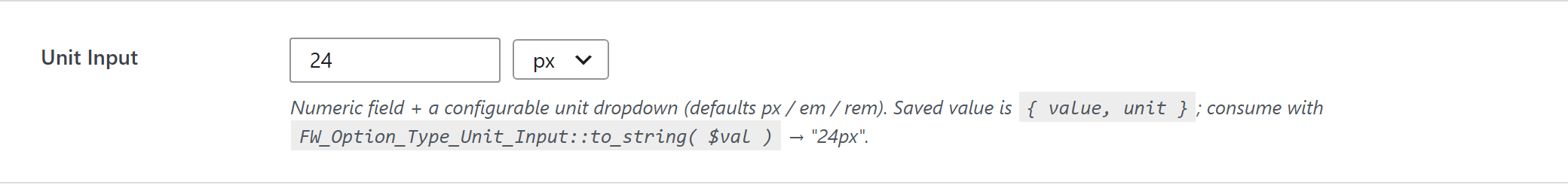

Option type — Theme Settings example
$options = [
	'demo_unit_input' => [
		'label' => __( 'Unit Input', 'unysonplus' ),
		'type' => 'unit-input',
		'value' => [ 'value' => '24', 'unit' => 'px' ],
		'desc' => __( 'Numeric field + a configurable unit dropdown (defaults px / em / rem). Saved value is <code>{ value, unit }</code>; consume with <code>FW_Option_Type_Unit_Input::to_string( $val )</code> → "24px".', 'unysonplus' ),
		// — Optional attributes you can add —
		// 'max' => '',
	],
];

Separate units​

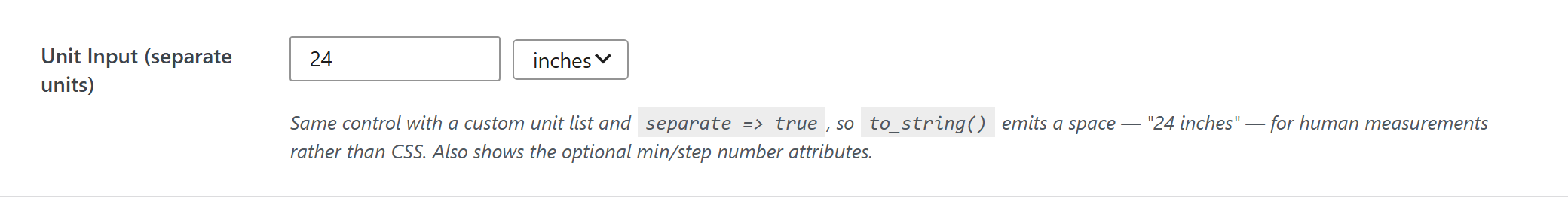

Option type — Theme Settings example
$options = [
	'demo_unit_input_separate' => [
		'label' => __( 'Unit Input (separate units)', 'unysonplus' ),
		'type' => 'unit-input',
		'units' => [ 'inches', 'cm', 'm' ],
		'separate' => true,
		'min' => 0,
		'step' => 0.5,
		'value' => [ 'value' => '24', 'unit' => 'inches' ],
		'desc' => __( 'Same control with a custom unit list and <code>separate => true</code>, so <code>to_string()</code> emits a space — "24 inches" — for human measurements rather than CSS. Also shows the optional min/step number attributes.', 'unysonplus' ),
	],
];

Reading the value​

unit-input returns an array — read a field by key (the full shape is in Saved value below).

In a shortcode​

The shortcode framework passes the option values into view.php as $atts:

$value = $atts['demo_unit_input'];
echo esc_attr( $value['value'] . $value['unit'] ); // e.g. "20px"

In a page template — a per-page option​

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_unit_input' );
echo esc_attr( $value['value'] . $value['unit'] ); // e.g. "20px"

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book  = fw_get_db_post_option( get_the_ID(), 'book' );
$value = $book['demo_unit_input'];
echo esc_attr( $value['value'] . $value['unit'] ); // e.g. "20px"

In Theme Settings — a global option​

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_unit_input' );
echo esc_attr( $value['value'] . $value['unit'] ); // e.g. "20px"

Saved value​

fw_print( fw_get_db_settings_option( 'demo_unit_input' ) ) outputs — the shape of this option type's stored value:

Array
(
    [value] => 24
    [unit] => px
)
