How the Page Builder works

The Page Builder is, at its core, a single option type — page-builder (FW_Option_Type_Page_Builder, which extends the generic FW_Option_Type_Builder). Everything you drag onto the canvas is serialized into one JSON value, stored in post meta, and turned back into HTML at render time by converting it to shortcodes and running them through WordPress's do_shortcode().

Understanding that pipeline is the key to everything else — the JSON format, the corrector, the migration traps and the clean-DOM rule are all stages of it.

The data flow at a glance

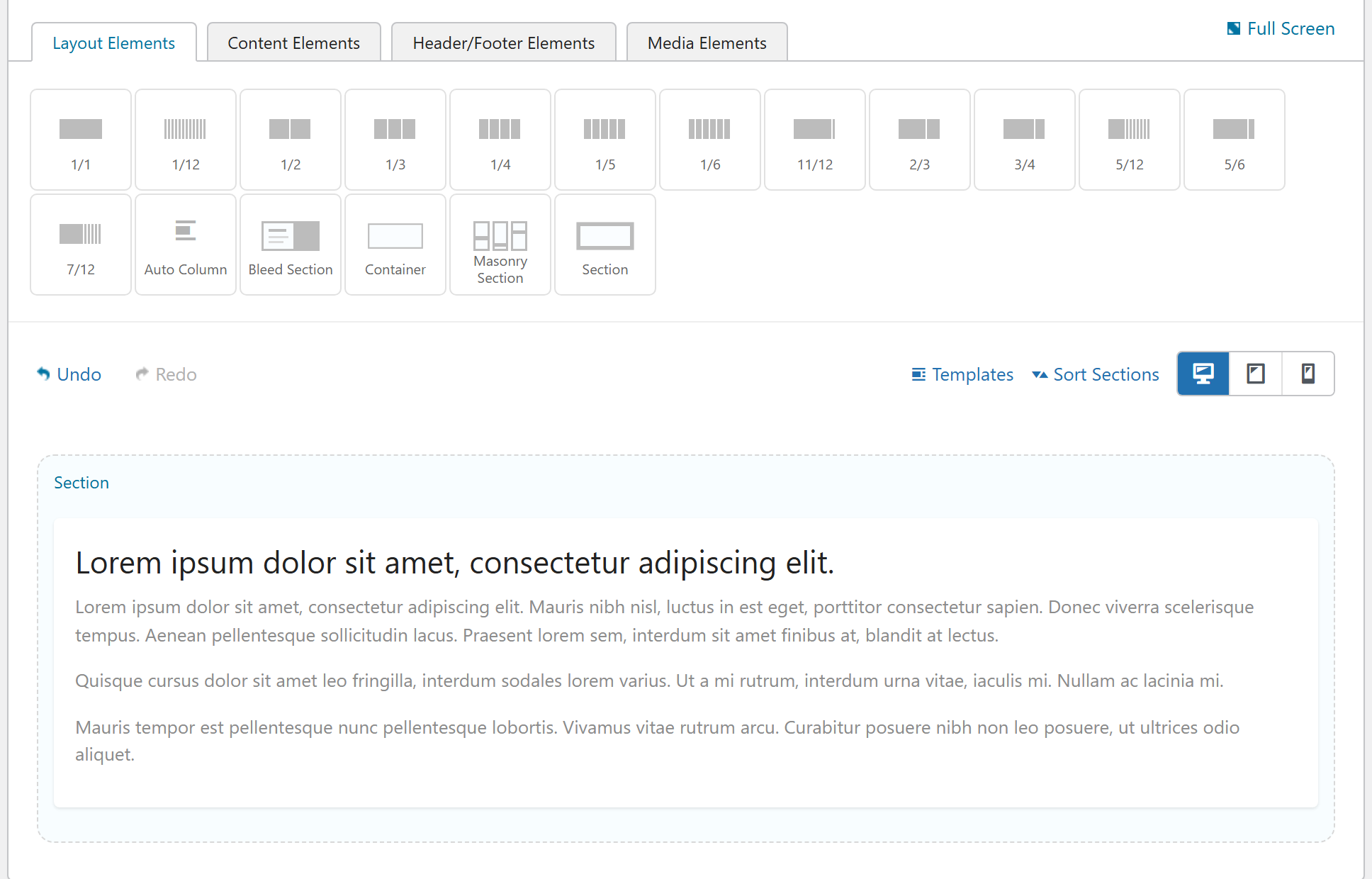

  Builder canvas (Backbone models)
        │  save
        ▼
  Stored value  { json: "<stringified tree>", builder_active: true }
        │  post meta  fw:opt:ext:pb:page-builder:json
        ▼
  Front-end render: json_to_shortcodes( json )
        │
        ├─ get_value_from_items()      → re-hydrate each item's option values
        ├─ items corrector .correct()  → wrap loose items into section→row→column, group columns
        ├─ notation generator          → build [section][row][column][atom …][/atom]…[/section]
        ▼
  do_shortcode()  →  each element's view.php  →  clean HTML

Every stage is a real class you can read in the source:

Stage	Class / method	File
Stored value shape	FW_Option_Type_Page_Builder::_get_defaults()	…/page-builder/class-fw-option-type-page-builder.php
Persisted post meta	FW_Option_Storage_Type_Post_Meta_Page_Builder	…/includes/option-storage/
JSON → shortcodes	FW_Option_Type_Page_Builder::json_to_shortcodes()	same option-type file
Grid correction	_Page_Builder_Items_Corrector::correct()	…/includes/items-corrector/
Shortcode string	_Page_Builder_Notation_Generator::generate_notation()	…/includes/class-page-builder-notation-generator.php
Per-element render	each shortcode's view.php	…/shortcodes/shortcodes/<name>/views/view.php

1. The stored value

The page-builder option stores a small wrapper, not the tree directly:

'value' => array(
    'json'           => '[]',   // the builder tree, JSON-encoded as a STRING
    'builder_active' => false,  // is the builder (vs the default editor) active for this post?
)

builder_active is what tells the theme to render the builder output instead of the post's normal content. It's set on save from the page-builder-active request flag (see _get_value_from_input()), and the theme checks it before emitting builder HTML.

The tree itself is a JSON string under json, stored in post meta as fw:opt:ext:pb:page-builder:json. See The builder JSON tree format for the anatomy of that tree.

Why a string, not nested JSON?

Keeping json as an opaque string means the builder value round-trips through forms, AJAX and the database without WordPress's meta handling trying to walk or "fix" the nested structure. The builder option can also gzip very large values (compress_form_value), though that's rarely triggered in practice.

2. From canvas to JSON

In the editor each item is a Backbone model (section, row, column, or a "simple" leaf element). Adding, sorting, duplicating and editing all happen client-side. On save the builder serializes the model tree into the json string. The important consequence for anyone extending an element:

When you open an element's options modal, the modal is constructed with the element's raw saved atts — new fw.OptionsModal({ values: this.model.get('atts') }). No PHP runs first.

That single fact is the source of the most common extension bug, covered in The items corrector & editor-load gotcha.

3. Re-hydrating option values

When the front end (or the shortcode-conversion path) processes the tree, each simple item runs Page_Builder_Simple_Item::get_value_from_attributes(). This re-derives every option's value through fw_get_options_values_from_input() so that:

• an element whose modal was never opened gets its options' default values, and
• options that auto-generate part of their value (e.g. unique ids) are refreshed.

This call is wrapped in a try { … } catch ( \Throwable $e ) {} resilience guard: if an option's stored value shape changed between plugin versions and re-derivation throws, the item falls back to its raw saved atts instead of aborting the whole conversion. See the gotcha page for why that guard exists.

4. Correcting the grid

A user can drop a bare element onto the canvas with no surrounding section/row/column. Before rendering, _Page_Builder_Items_Corrector walks the tree and wraps loose items so the output is always a valid grid: a stray simple element becomes section → row → column → element, and consecutive columns are grouped into rows. Nested columns and the Container element are handled here too. Full detail: The items corrector.

5. Generating the shortcode string

_Page_Builder_Notation_Generator turns the corrected tree into a shortcode string:

[section …][row][column …][special_heading title="…"][/special_heading][/column][/row][/section]

Each element's atts are JSON-encoded by the shortcodes extension's attribute coder, so complex nested option values survive the round-trip into a shortcode attribute.

Nested-column aliasing

WordPress's shortcode parser is non-recursive for the same tag — a [row] inside a [column] inside another [row] would mis-match its closing tags. So a row synthesized inside a column (and that row's columns) are emitted as the alias tags fw_inner_row / fw_inner_column, which render through the same row/column instances. The editor caps authoring at one nested level; a hand-authored or imported tree deeper than that would re-collide at depth 2.

6. Rendering

do_shortcode() runs the generated string. Each element's view.php emits its markup. Because the markup is hand-written per element (not a generic wrapper soup), the output stays lean — see the clean-DOM philosophy.

The live-editor / single-item exception

When the Live Editor re-renders a single column or leaf, full correction is skipped (it would wrap the fragment in a section/row). That path still runs a standalone normalize_nested_columns() pass so a column-in-column subtree emits the fw_inner_* aliases correctly. This is the only place correction is bypassed; it's gated by needs_correction() and the fw:ext:page-builder:json-structure-needs-correction filter.
